Request Element

In This Topic

Description

The LoginRequest contains the user credentials required when the user calls the Login() web method.

Namespace

https://wsapi.ams360.com/v3.0

Type

LoginRequest Complex Type

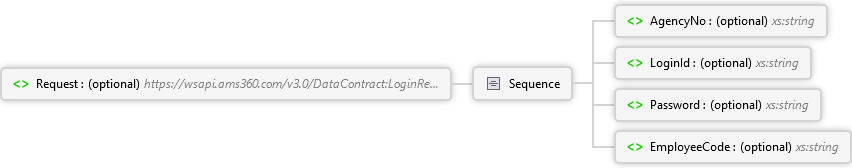

Diagram

Overview

Request optional LoginRequest Complex Type

The LoginRequest contains the user credentials required when the user calls the Login() web method.

Sequence

AgencyNo optional xs:string

AMS360 agency number for the agency to be accessed by subsequent WSAPI calls.

LoginId optional xs:string

WSAPI user Id with which to authenticate access to WSAPI. Supplied to the client by the agency.

Password optional xs:string

Password for the WSAPI user Id. Supplied to the client by the agency.

EmployeeCode optional xs:string

Unique identifier for an AMS360 employee upon which business unit security is applied. Required if LoginId's data security (this is setup within AMS360) is based on a supplied employee code.

Source

<xs:element xmlns:q18="https://wsapi.ams360.com/v3.0/DataContract" minOccurs="0" name="Request" nillable="true" type="q18:LoginRequest" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>The LoginRequest contains the user credentials required when the user calls the Login() web method.</xs:documentation>
  </xs:annotation>
</xs:element>
