FileChunkSend Element

In This Topic

Namespace

https://wsapi.ams360.com/v3.0

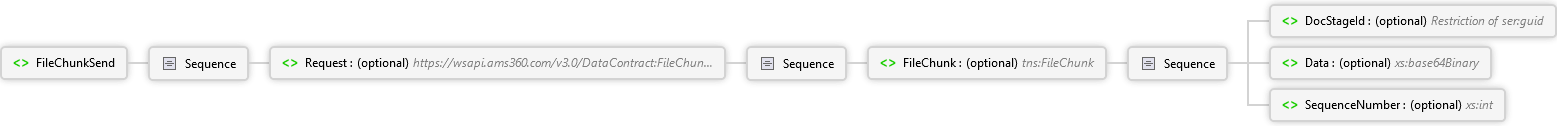

Diagram

Overview

FileChunkSend

Sequence

Request optional FileChunkSendRequest Complex Type

Request object containing the individual file chunks.

Sequence

FileChunk optional FileChunk Complex Type

Single file chunk.

Sequence

DocStageId optional guid Simple Type

DocStageId from FileChunkBeginResponse for document being uploaded.

Insert Validation:
Must be a valid DocStageId.

Data optional xs:base64Binary

Part of the document being uploaded.

SequenceNumber optional xs:int

Sequence number of this file chunk. File chunks will be sorted by this when assembling the entire file.

Insert Validation:
Must be unique across DocStageId.

Source

<xs:element name="FileChunkSend" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:complexType>
    <xs:sequence>
      <xs:element xmlns:q13="https://wsapi.ams360.com/v3.0/DataContract" minOccurs="0" name="Request" nillable="true" type="q13:FileChunkSendRequest">
        <xs:annotation>
          <xs:documentation>Request object containing the individual file chunks.</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>
