request Element

In This Topic

Namespace

https://wsapi.ams360.com/v3.0

Type

CustomerContactUpdateRequest Complex Type

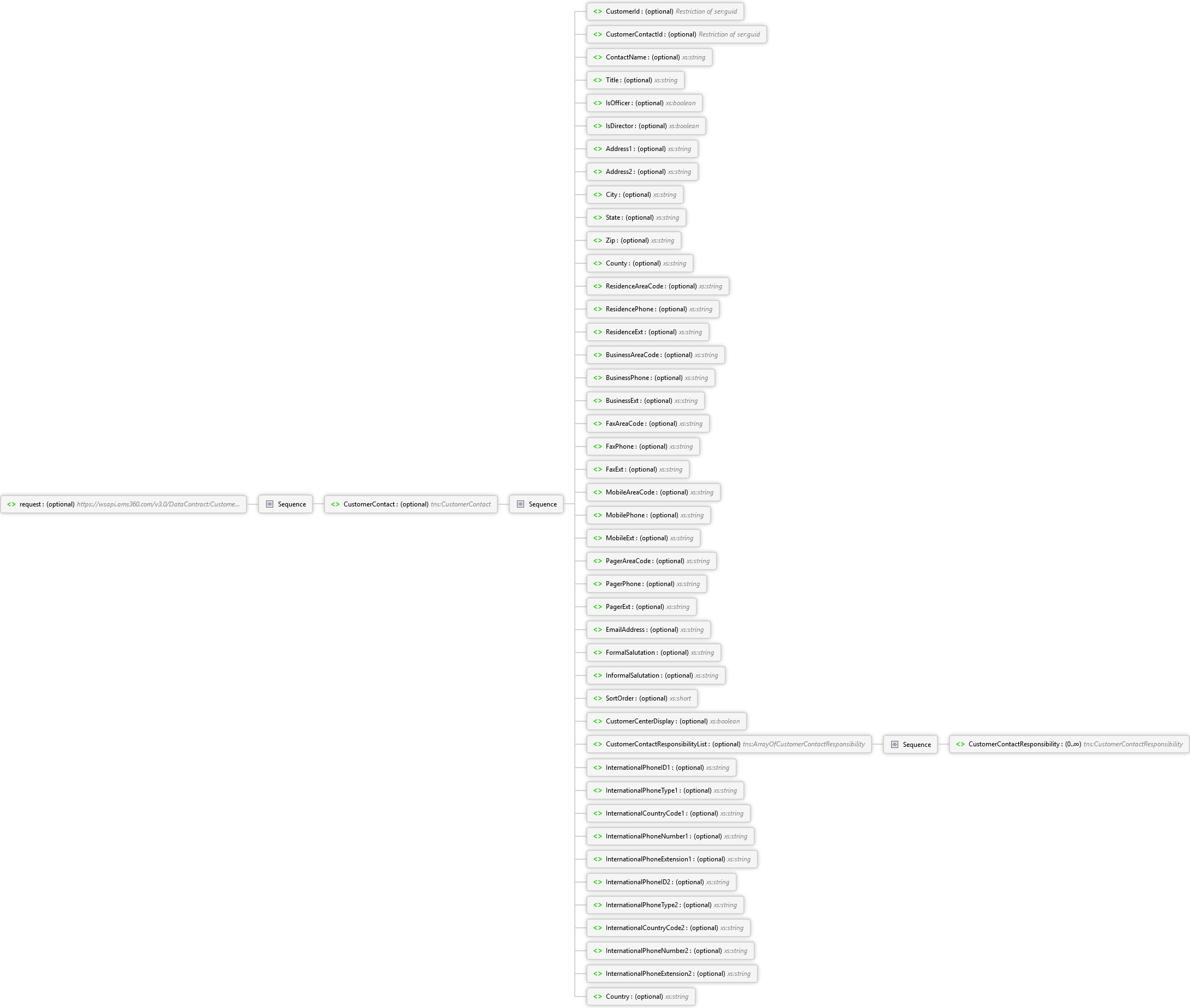

Diagram

Overview

request optional CustomerContactUpdateRequest Complex Type

Sequence

CustomerContact optional CustomerContact Complex Type

Single Customer Contact type data structure.

Sequence

CustomerId optional guid Simple Type

Globally Unique Identifier (GUID) for a customer.

Insert Validation:
Customer with this CustomerId must exist.

Update Validation:
Customer with this CustomerId must exist.

36 character alpha-numeric column formatted as: 00000000-0000-0000-0000-000000000000

CustomerContactId optional guid Simple Type

Globally Unique Identifier (GUID) for a customer contact.

Insert Validation:
AMS360 creates on insert.

Update Validation:
Must be a valid CustomerContactId for the customer.

36 character alpha-numeric column formatted as: 00000000-0000-0000-0000-000000000000

ContactName optional xs:string

Customer contact's contact name.

Title optional xs:string

Customer contact's title.

IsOfficer optional xs:boolean

Flag indicating whether the contact is officer (true) or not (false).

IsDirector optional xs:boolean

Flag indicating whether the contact is director (true) or not (false).

Address1 optional xs:string

First line of address.

Address2 optional xs:string

Second line of address.

City optional xs:string

City portion of address.

State optional xs:string

State portion of address.

Code value from the "State" value list for AttrCode = 'STA'.

Method=ValueListGet()
InputType=ValueListGetRequest
ListName=State

Zip optional xs:string

Zip code portion of address.

ZipCode must be formatted as one of: 99999, 999999999, or A9A9A9

County optional xs:string

County portion of address.

ResidenceAreaCode optional xs:string

Area code portion of the phone number.

ResidencePhone optional xs:string

Phone portion of the residence phone number.

Insert Validation:
Required if residence area code exists.

Update Validation:
Required if residence area code exists.

ResidenceExt optional xs:string

Extension portion of the phone number.

BusinessAreaCode optional xs:string

Area code portion of the business phone number.

BusinessPhone optional xs:string

Phone portion of the business phone number.

Insert Validation:
Required if business area code exists.

Update Validation:
Required if business area code exists.

BusinessExt optional xs:string

Extension portion of the business phone number.

FaxAreaCode optional xs:string

Area code portion of the fax phone number.

FaxPhone optional xs:string

Phone portion of the fax phone number.

Insert Validation:
Required if fax area code exists.

Update Validation:
Required if fax area code exists.

FaxExt optional xs:string

Extension portion of the fax phone number.

MobileAreaCode optional xs:string

Area code portion of the mobile phone number.

MobilePhone optional xs:string

Phone portion of the mobile phone number.

Insert Validation:
Required if mobile area code exists.

Update Validation:
Required if mobile area code exists.

MobileExt optional xs:string

Extension portion of the mobile phone number.

PagerAreaCode optional xs:string

Area code portion of the pager phone number.

PagerPhone optional xs:string

Phone portion of the pager phone number.

Insert Validation:
Required if pager area code exists.

Update Validation:
Required if pager area code exists.

PagerExt optional xs:string

Extension number portion of the pager phone number.

EmailAddress optional xs:string

Electronic mail address.

FormalSalutation optional xs:string

Salutation used in formal correspondence.

InformalSalutation optional xs:string

Salutation used in informal correspondence.

SortOrder optional xs:short

Sort Order for Contact grid.

If CustCenterDisplay field is false, then this field will be ignored.
If CustCenterDisplay field is true, then valid numbers for this field are between 1 and 999

CustomerCenterDisplay optional xs:boolean

Flag indicating whether to display name on Customer Center (true) or not (false).

CustomerContactResponsibilityList optional ArrayOfCustomerContactResponsibility Complex Type

Collection of CustomerContactResponsibility types for this Customer Contact.

Sequence

CustomerContactResponsibility 0..∞ CustomerContactResponsibility Complex Type

Sequence

CustomerContactResponsibilityId optional guid Simple Type

Globally Unique Identifier (GUID) for a customer contact responsibility.

Insert Validation:
AMS360 creates on insert.

Update Validation:
Must be a valid CustomerContactId for the Customer Contact.

36 character alpha-numeric column formatted as: 00000000-0000-0000-0000-000000000000

ResponsibilityType optional xs:string

Responsibility type.

Code value from the Responsibility value list for AttrCode = 'RES'.

Method=ValueListGet()
InputType=ValueListGetRequest
ListName=Responsibility

InternationalPhoneID1 optional xs:string

InternationalPhoneType1 optional xs:string

InternationalCountryCode1 optional xs:string

InternationalPhoneNumber1 optional xs:string

InternationalPhoneExtension1 optional xs:string

InternationalPhoneID2 optional xs:string

InternationalPhoneType2 optional xs:string

InternationalCountryCode2 optional xs:string

InternationalPhoneNumber2 optional xs:string

InternationalPhoneExtension2 optional xs:string

Country optional xs:string

Source

<xs:element xmlns:q99="https://wsapi.ams360.com/v3.0/DataContract" minOccurs="0" name="request" nillable="true" type="q99:CustomerContactUpdateRequest" xmlns:xs="http://www.w3.org/2001/XMLSchema" />
