CustomerDependentGetResponse Element
In This Topic
Type

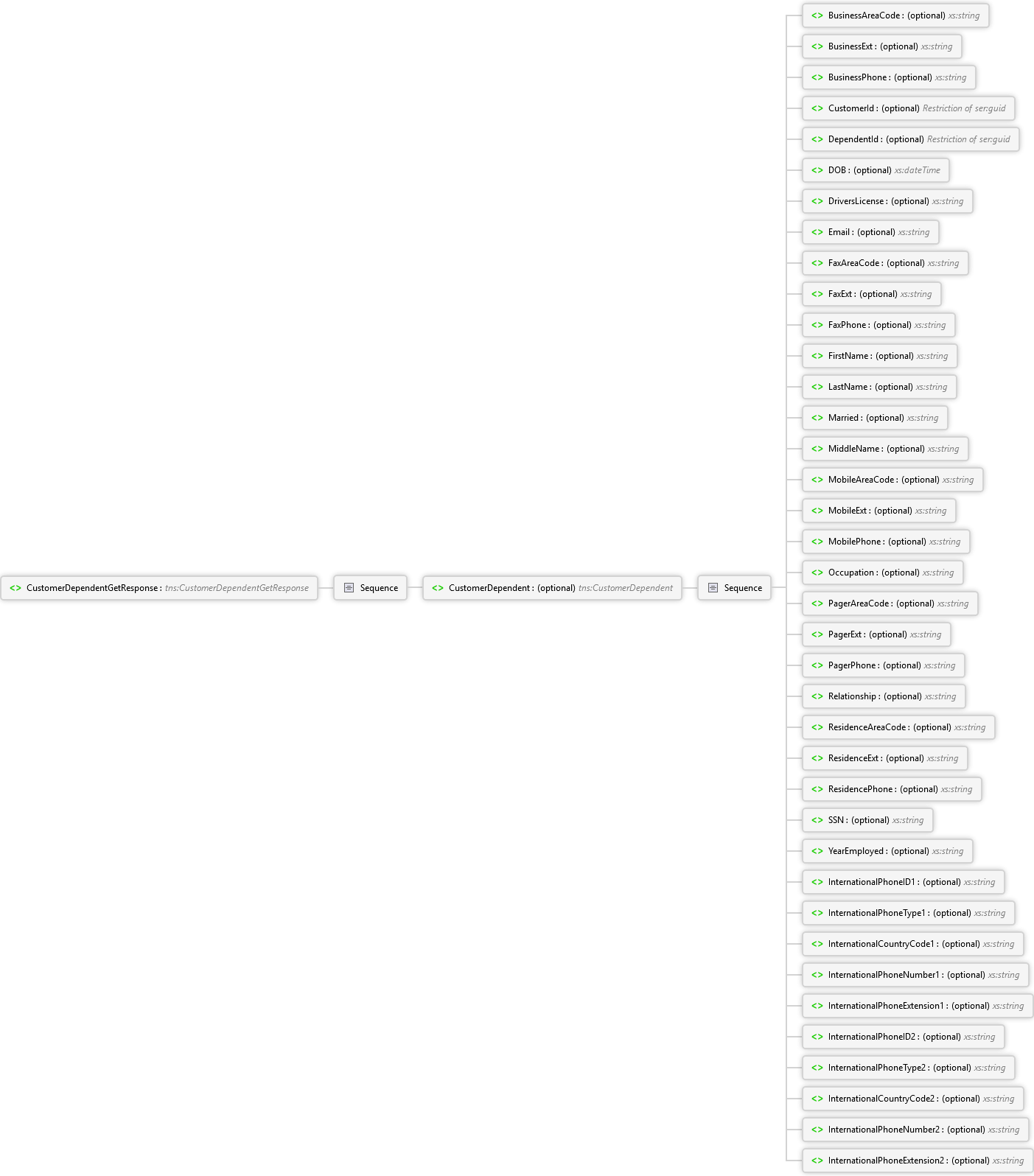

Diagram
Overview
 |
 |
Sequence
|
|
Sequence
|
BusinessAreaCode optional xs:string
Area code portion of the business phone number.
|
|
BusinessExt optional xs:string
Extension portion of the business phone number.
|
|
BusinessPhone optional xs:string
Phone portion of the business phone number.
Insert Validation:
Required if business area code exists.
Update Validation:
Required if business area code exists.
|
|
CustomerId optional guid Simple Type
Globally Unique Identifier (GUID) for a customer.
Insert Validation:
Customer with this CustomerId must exist.
Update Validation:
Customer with this CustomerId must exist. 36 character alpha-numeric column formatted as: 00000000-0000-0000-0000-000000000000
|
|
DependentId optional guid Simple Type
Globally Unique Identifier (GUID) for a customer dependent.
Insert Validation:
AMS360 creates on insert.
Update Validation:
Must be a valid DependentId for the customer. 36 character alpha-numeric column formatted as: 00000000-0000-0000-0000-000000000000
|
|
DOB optional xs:dateTime
Date of Birth. Example: 01/01/1968
|
|
Email optional xs:string
Electronic mail address.
|
|
FaxAreaCode optional xs:string
Area code portion of the fax phone number.
|
|
FaxExt optional xs:string
Extension portion of the fax phone number.
|
|
FaxPhone optional xs:string
Phone portion of the fax phone number.
Insert Validation:
Required if fax area code exists.
Update Validation:
Required if fax area code exists.
|
|
FirstName optional xs:string
Dependent's First Name.
|
|
LastName optional xs:string
Dependent's Last Name.
|
|
Married optional xs:string
Marital Status.
|
|
MiddleName optional xs:string
Dependent's Middle Name.
|
|
MobileAreaCode optional xs:string
Area code portion of the mobile phone number.
|
|
MobileExt optional xs:string
Extension portion of the mobile phone number.
|
|
MobilePhone optional xs:string
Phone portion of the mobile phone number.
Insert Validation:
Required if mobile area code exists.
Update Validation:
Required if mobile area code exists.
|
|
PagerAreaCode optional xs:string
Area code portion of the pager phone number.
|
|
PagerExt optional xs:string
Extension number portion of the pager phone number.
|
|
PagerPhone optional xs:string
Phone portion of the pager phone number.
Insert Validation:
Required if pager area code exists.
Update Validation:
Required if pager area code exists.
|
|
ResidenceAreaCode optional xs:string
Area code portion of the residence phone number.
|
|
ResidenceExt optional xs:string
Extension portion of the residence phone number.
|
|
ResidencePhone optional xs:string
Phone portion of the residence phone number.
Insert Validation:
Required if residence area code exists.
Update Validation:
Required if residence area code exists.
|
|
SSN optional xs:string
Social security number.
|
| | | |
Source
<xs:element name="CustomerDependentGetResponse" nillable="true" type="tns:CustomerDependentGetResponse" xmlns:xs="http://www.w3.org/2001/XMLSchema" /> |
